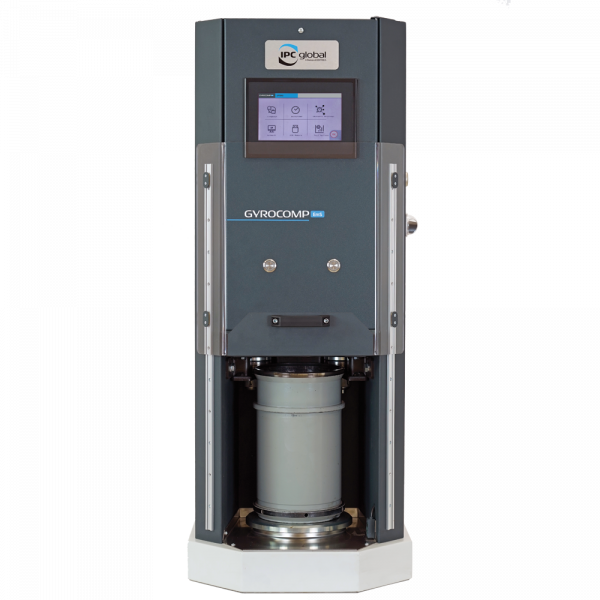

New Gyratory Compactor GYROCOMP EmS

Print this page

General Description

Gyratory Compactors enable engineers to reproduce real world compaction conditions during road paving operations, allowing them to ascertain the compa...

Fully standalone
7” touchscreen panel color display, with possibility to modify, save and recall a large range of testing procedure for fast test performance
High productivity, designed for continuous and heavy use
High rigidity thus lightweight due to the propriety orbital system
Compact and lightweight, also ideal for mobile laboratories
Very reliable and accurate
Certified to EN and AASHTO
Approved as Superpave™ Gyratory Compactor in U.S.A.
Sliding transparent door
Full safety and ergonomic design
Integrated electromechanical extruder option
Large range of accessories available
2 years full warranty

Ask an Expert Quote

Technical specifications

Description

Gyratory Compactors enable engineers to reproduce real world compaction conditions during road paving operations, allowing them to ascertain the compaction qualities of an asphalt mixture.

Advanced with new electromechanical technology

Light and portable GYROCOMP EmS is the ideal solution for Quality Control (QC) that can even be easily installed in mobile laboratories.

The new electromechanical actuator makes it a 100% stand-alone machine, as it only requires single-phase power supply and no external air compressor which reduces the amount of maintenance and makes it easier to install.

Products

Code

Description

Units

Technical Specifications

Compacted specimen size: 150 and 100 mm dia.
Sample height: 80 to 200 mm (150 mm)- 50 to 125 mm (100 mm)
Consolidation pressure: 80 to 800 kPa (150 mm); 160 to 1400 kPa (100 mm)
Internal angle of gyration: Adjustable from 0.70 to 1.40°.
Preset to 1.16° internal angle (78-PV2532, ASTM/AASHTO models)
Preset to 0.82° internal angle (78-PV2532/E, EN models)
Speed of gyration: adjustable from 20 to 60 rpm
Number of gyrations: adjustable up to 999
Test programmable either by number of gyrations or specimen height
Communication with PC: RS 232 connections
Internal memory: more than 200’000 tests
Power rating: 1000 W
Dimensions (including extruder bench, W x D x H): 502 x 753 x 1940 mm
Dimensions (W x D x H): 469 x 615 x 1130 mm
Weight approx.: 100 kg

Standards

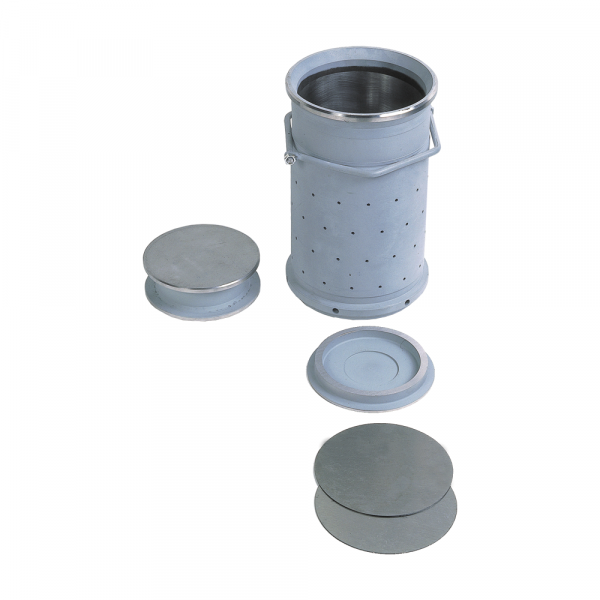

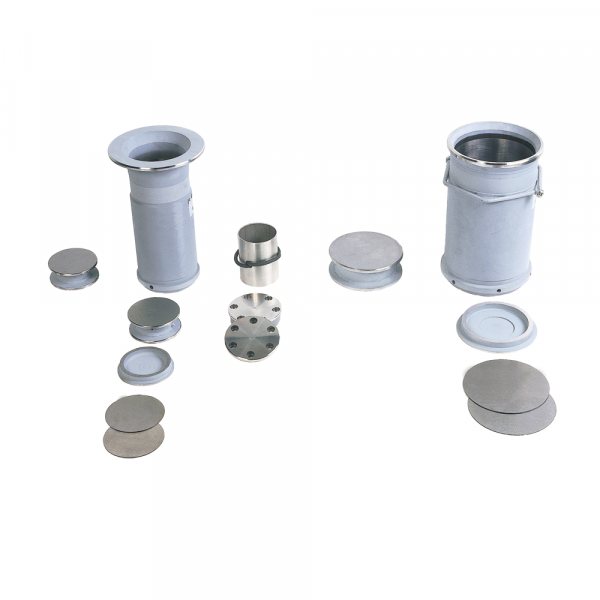

Accessories and Spare Parts

Code

Description

Units
