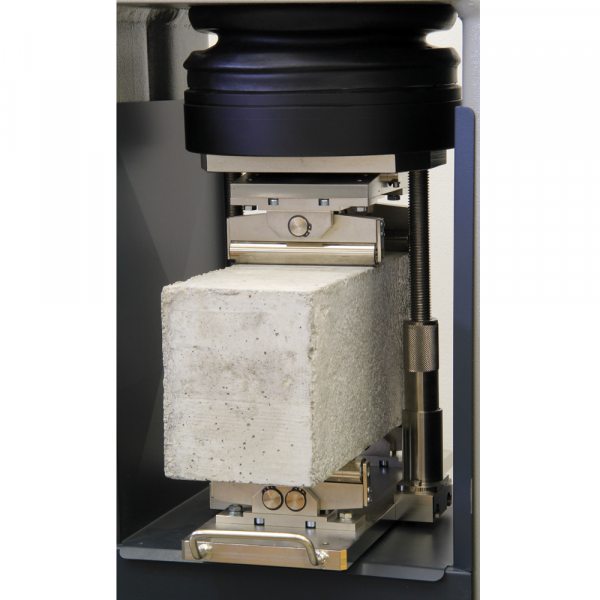

Flexural Test Device for Concrete Beams

Imprimir esta Pàgina

Descripción General

Flexure testing accessory for center and third point test on concrete beams. Total height: 370 mm when adjusted for 150 mm beams and 320 mm for 100 mm...

Leer más

Pregunta a un Experto Pedir Presupuesto

Especificaciones Tecnicas

Descripción

Flexure testing accessory for center and third point test on concrete beams. Total height: 370 mm when adjusted for 150 mm beams and 320 mm for 100 mm beams. The devices can be easily placed on the compression tester by removing the bottom platen or by using suitable distance pieces to adjust the vertical daylight.

Productos

Código

Descripción

Unidades

Especificaciones Tecnicas

Max vertical daylight: 155mm (total height:370mm)
Min vertical daylight: 110mm (total height:320mm)
Max travel: 45mm
Rollers: dia.25mm x 160mm
Distance between upper rollers: 100mm or 150mm
Distance between lower rollers: 300mm or 450mm
Weight approx.: 41 kg
Total width: 255mm

Normativas

EN 12390-5
AASHTO T97
ASTM C293
ASTM C78
